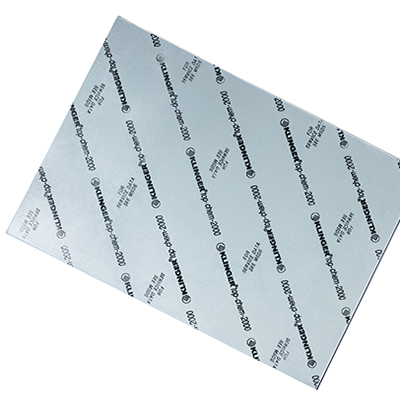

KLINGERtop-chem-2000

Application : Virtually all media up to 260 oC - acids, alkalies, and steam.

• Excellent sealing property at high temperature and pressure.
• Ideal for aggressive chemicals, steam and oxygen applications.
• Only ptfe material Fire Safe certification.
• Supplied in sheets as well as die-cut gaskets on goal.

General data

Type: KLINGERtop-Chem-2000

Material: Modified PTFE

Color: Light gray both sides

Compressibility ASTM F36A: 2%

springback ASTM F36A: 55%

Pressure stability DIN 52 913 (1.5 mm): 35 N / mm²

Gas leakage DIN 3535/6: <0 , 5 ml / min.

Density: 2.5 g / cm 3

Media resistance: see table resistance

Approvals:

- DIN DVGW

- BAM, TA Luft

- "fire-safe" API 6FA

- KTW + FDA

- Germanischer Lloyd

- United States Coast Guard

- Det Norske Veritas AS

Registro Italiano Navale

pressure and temperature chart:

Area 1: Taking into account the media and feed rate - no verification.

Area 2: We recommend contacting Klinger for advice.

Area 3: Contact Klinger for advice.
