Female threaded
Application: Heating and cooling systems
General Data
| Type: | Fig Z-221 |
| Material: | Brass EN12165 |
| Pressure: | 25 bar, max. 20 bar at 130ºC |
| Seat sealing: | EPDM |
| O-rings: | EPDM |
| Adjustment handwheel: | Heat-resistant ABS |
| Connection: | Female threads BSPT |
| Temperature: | -10 to 130ºC (antifreezes under 0°C) |

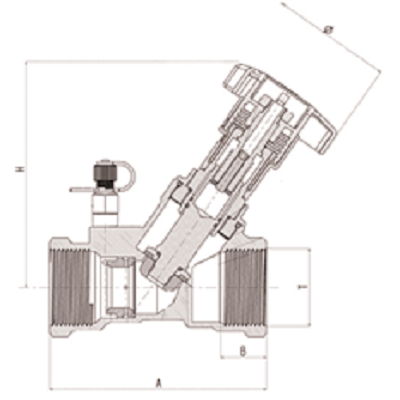

| DIMENSIONS (mm) | WEIGHT | ||||||
|---|---|---|---|---|---|---|---|
| Item No. | connection | Ø (handle) | A | B | H | Kv | kg |
| 05208225 | 1/2" | 70 | 87,8 | 17,5 | 103 | 1,92 | 0,55 |
| 05208226 | 3/4" | 70 | 95,9 | 19 | 103 | 3,66 | 0,62 |
| 05208227 | 1" | 70 | 100 | 22,5 | 103 | 6,25 | 0,75 |
| 05208228 | 11/4" | 70 | 117,5 | 24,8 | 123,3 | 6,25 | 1,19 |
| 05208229 | 11/2" | 70 | 127 | 24,8 | 125,4 | 19,65 | 1,45 |
| 05208223 | 2" | 70 | 145,3 | 29,2 | 135,6 | 29,59 | 2,06 |
