Spill Valve, gun metal


Female Threaded

Application: Self-acting spill/ back pressure relief valve for liquid and air

  • Simple and robust
  • Specially designed diaphragm that serves as both maneuvering and media diaphragm
  • Easy to adjust



General Data

Type: VE209
Material: RG5
Pressure class: PN10
Seat: RG5
Diaphragm: Neoprene
Spring box: Silumin
Spring: Galvanized steel
Face to face: See below
Connection: BSP female
Temperature: Max. 90ºC
Options: Diaphragm with PTFE disc
Kvs: m3/h









Type: VE209

VE 209 (1/2"-1")

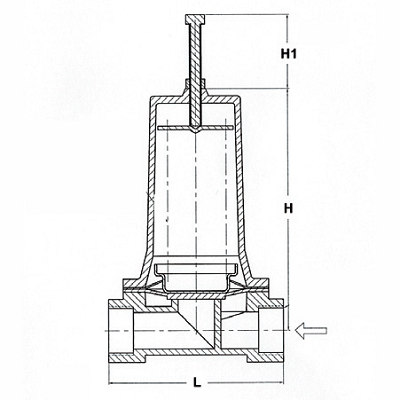

DIMENSIONS (mm) RANGE
Item No. DN (Kvs) L H / H1 BSP Ø diaphragm Bar
97905016 15 (10) 120 165 / maks.50 1/2" 100 0,5 - 2,5
97905017 20 (10) 120 165 / maks.50 3/4" 100 0,5 - 2,5
97905015 25 (10) 120 165 / maks.50 1" 100 0,5 - 2,5
97905024 15 (10) 120 165 / maks.50 1/2" 100 1 - 5
97905025 20 (10) 120 165 / maks.50 3/4" 100 1 - 5
97905023 25 (10) 120 165 / maks.50 1" 100 1 - 5
97905026 15 (10) 120 165 / maks.50 1/2" 100 2 - 10
97905027 20 (10) 120 165 / maks.50 3/4" 100 2 - 10
97905028 25 (10) 120 165 / maks.50 1" 100 2 - 10
