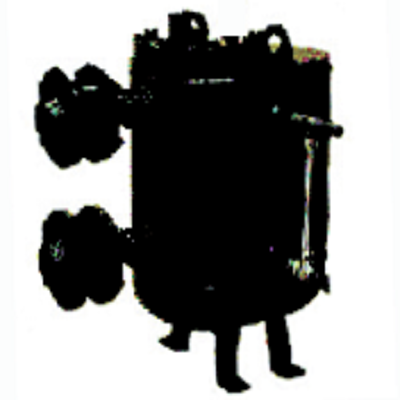

Pumping Traps

Steel, without water discharge

Application: In places where condensate under vacuum or low pressure must be pumped into the return condensate pipe.

Steam or air as propellant
No cavitation in relation to electric pumps
100% stainless steel float mechanism
Springs in Inconel ensure extremely long life
Large condensate discharge per pump cycle gives longer life
Valves for fuel and venting can be renovated from the outside without separating the tank
Can be used in hazardous areas
Compact installation dimensions
Stainless steel check valves included
CE marked - also complete units General data

Generel data

Type:	EPT-200 serie
Material:	Steel. Option: Stainless steel.
Spring:	Inconel X-750
Valves:	Stainless steel
Contra valves:	Stainless steel AISI 316

Connections:	: Flanges PN10 on the inflow and the offspring
	: Propellant (air or steam) 1/2" BSPT
	: Ventilation 1" BSPT
	: Sightglass 1/2" BSPT
	: Drainage 1/2" BSPT
	: Propellant 1/2" BSPT

Pressure/Temperature:	10 bar v/ 250°C

Options	: Sight glass
	: Cyclus counter
	: Manometer
	: Complete units
	: Isolation coats
	: Horisontal version EPT2064/14
	: Types with grater capacity
	: Assembled units

Important
It is recommended at all times to run with the lowest possible (+1 bar) to avoid water stroke and achieve optimal service life of the switch valves.

Type: EPT-200 serie

EPT-204

	CONNECTION		DIMENSIONS (mm)
Item No.	Inlet	Outlet	Z C	A H	M T U	Weigth (kg)
	DN 25 (B.W.)	DN 25 (B.W.)	489 270	129 550	224 224 57	50

EPT-206

	CONNECTION		DIMENSIONS (mm)
Item No.	Inlet	Outlet	Z C	A H	M T U	Weight (kg)
	DN40 (B.W.)	DN40 (B.W.)	505 270	145 550	224 223 57	51

Capacity in kg/h

Pressure fuel	EPT-204		EPT-206
(bar)	Counterpressure (bar)	Steam	Air	Steam	Air
1,0	0,35	980	1145	1470	1635
1,7	0,35	1105	1250	1740	1905
3,5	0,35	1200	1360	1850	1960
5,0	0,35	1240	1470	1905	2015
7,0	0,35	1290	-	1960	-
7,0	0,35	1290	-	1960	-
8,5	0,35	1320	-	2015	-

1,7	1,0	815	1090	1305	1470
3,5	1,0	1090	1225	1740	1850
5,0	1,0	1145	1360	1795	1905
7,0	1,0	1180	-	1825	-
8,5	1,0	1200	-	1850	-

2,5	1,5	820	925	1150	1250
3,5	1,5	930	1090	1310	1415
5,0	1,5	1050	1250	1470	1580
7,0	1,5	1130	-	1600	-
8,5	1,5	1275	-	1650	-

3,5	3,0	760	925	850	1090
4,0	3,0	815	1090	1090	1250
5,0	3,0	925	1200	1250	1360
7,0	3,0	980	-	1375	-
8,5	3,0	1045	-	1430	-

4,5	4,0	625	1090	750	1090
5,0	4,0	720	1250	900	1250
7,0	4,0	900	-	1200	-
8,5	4,0	935	-	1280	-

Conversion factor at other inflow heights / Condensate amount per cycle: 19 L.

	Type
Inflow height (mm)	EPT-204	EPT-206
0	0,65	0,65
150	0,90	0,90
300	1,00	1,00
600	1,20	1,20
900	1,30	1,30
