KGS/S - NBR with steel

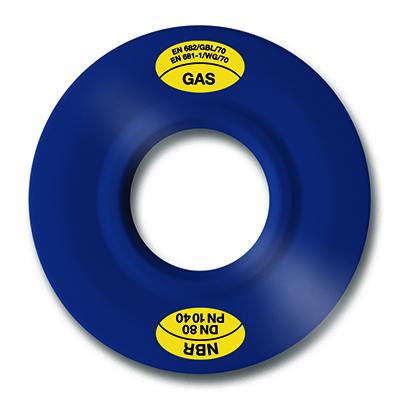

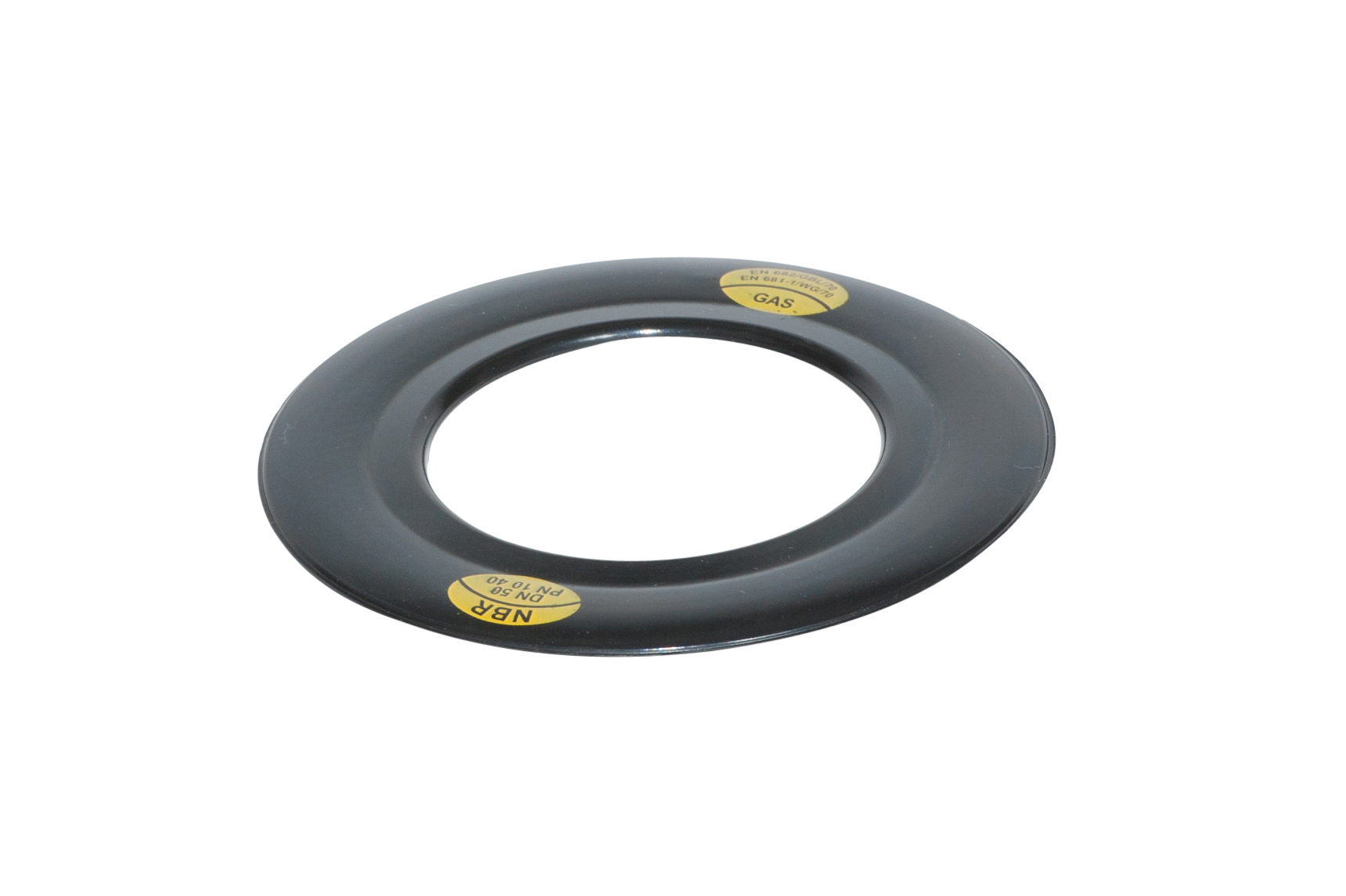

The KLINGER KGS/S is a rubber-steel gasket featuring a lenticular profile and an integrated molded spear tip along the gasket’s inner diameter. This spear tip, a key feature of the KGS/S gasket, enhances sealing security even at very low surface pressures. Acting as an embedded O-ring, the spear tip ensures a resilient seal that remains effective across varying pressure conditions. Additionally, the KGS/S gasket has rounded edges that minimize the risk of damage to flange surfaces during installation.

KGS/S is suitable for installation between flanges of varying materials, a common requirement in industrial environments. It performs effectively between enameled steel flanges and in applications involving mixed material connections, such as metal and plastic. Its specialized design makes it highly versatile and suitable for a wide range of applications.

The KLINGER KGS/S is an extremely high-quality gasket, engineered to withstand even the most challenging conditions, and it remains globally renowned for its outstanding performance. Its unique characteristics make it ideal for demanding industries requiring both reliability and long-lasting sealing integrity.

Application Field: The KLINGER®KGS/S gasket made of NBR offers excellent resistance to aliphatic hydrocarbons, mineral oils, fats, and fuels. This makes it particularly suitable for media containing hydrocarbons and combustible gases, as well as applications involving wastewater, service water, and industrial water systems. Its resistance properties make it a reliable choice in industries where such media are commonly encountered.

Application:
The KGS/S gasket is especially suitable for applications requiring low bolt force, as well as installations where flange surfaces may be slightly damaged or non-parallel. This makes it an ideal choice in setups where flexibility and reliable sealing are essential. The KGS/S is available in various sizes, including up to DN600, making it adaptable for both small and large systems.

General data
